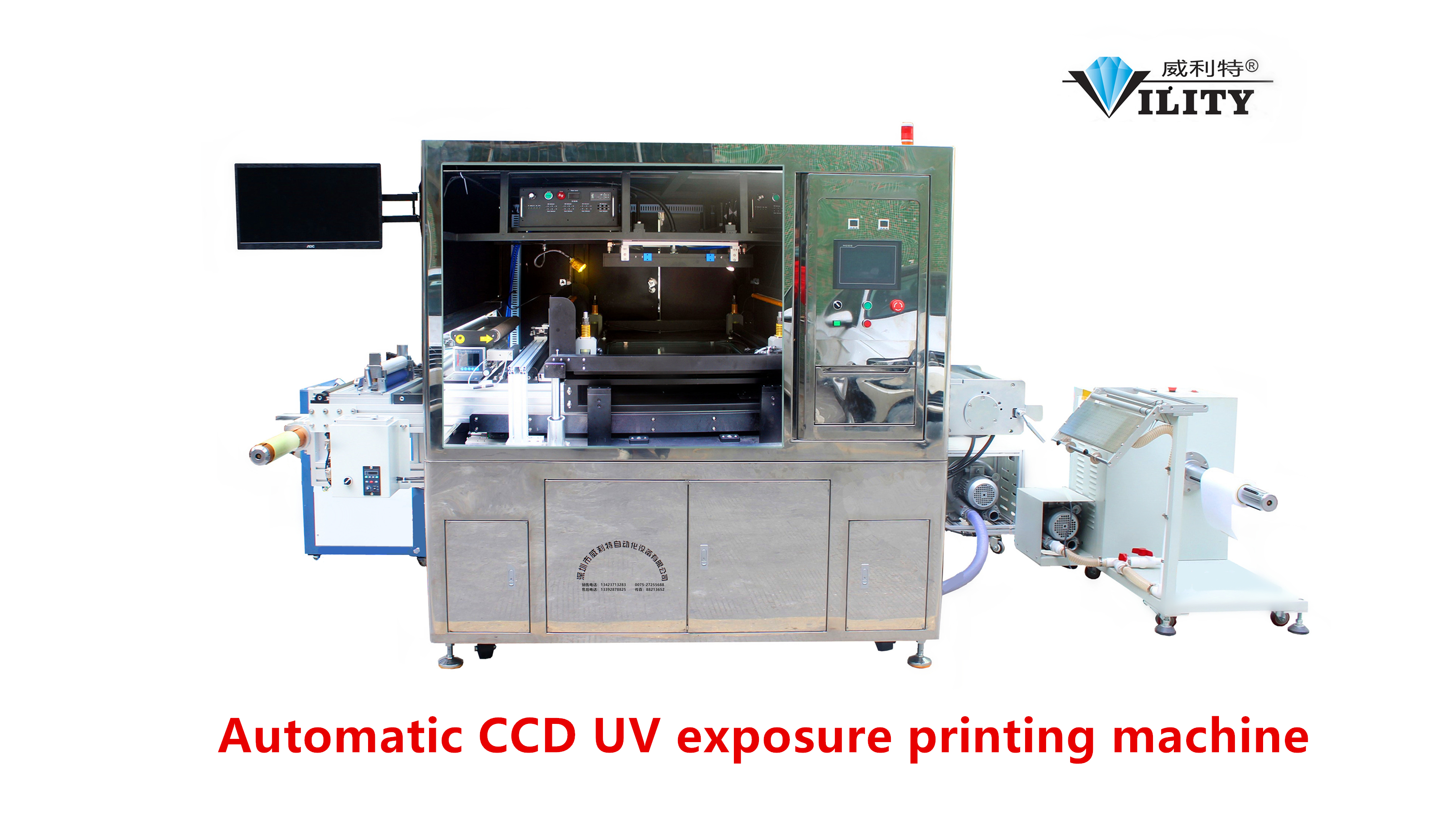

Application
For coiled material power battery panel, COB light strip, antenna plate and other COB double-side/singledes roll to roll exposure

Parameters

Type	VT3560BG-2	VT50180BG-2
Equipment weight	2000kg	3000kg
Mounting method	Floor standing	Floor standing
Material size	250*600mm	500*1800mm
CCD alignment accuracy	±0.02mm	±0.02mm
Number of CCD	2 ccd sets	2 ccd sets
Exposure method	flat light	flat light
Outline size	5200*1320*1825mm	6500*1320*1825mm
Control system	Vility	Vility
Power supply	3 phase 380V 50Hz	3 phase 380V 50Hz



After-Sales Service

• ? We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.

• ? Installation and debug machine for you without any charge. Also, giving a technical training for your employees.

• ? All of our machines can have one year guarantee and lifelong maintenance.
