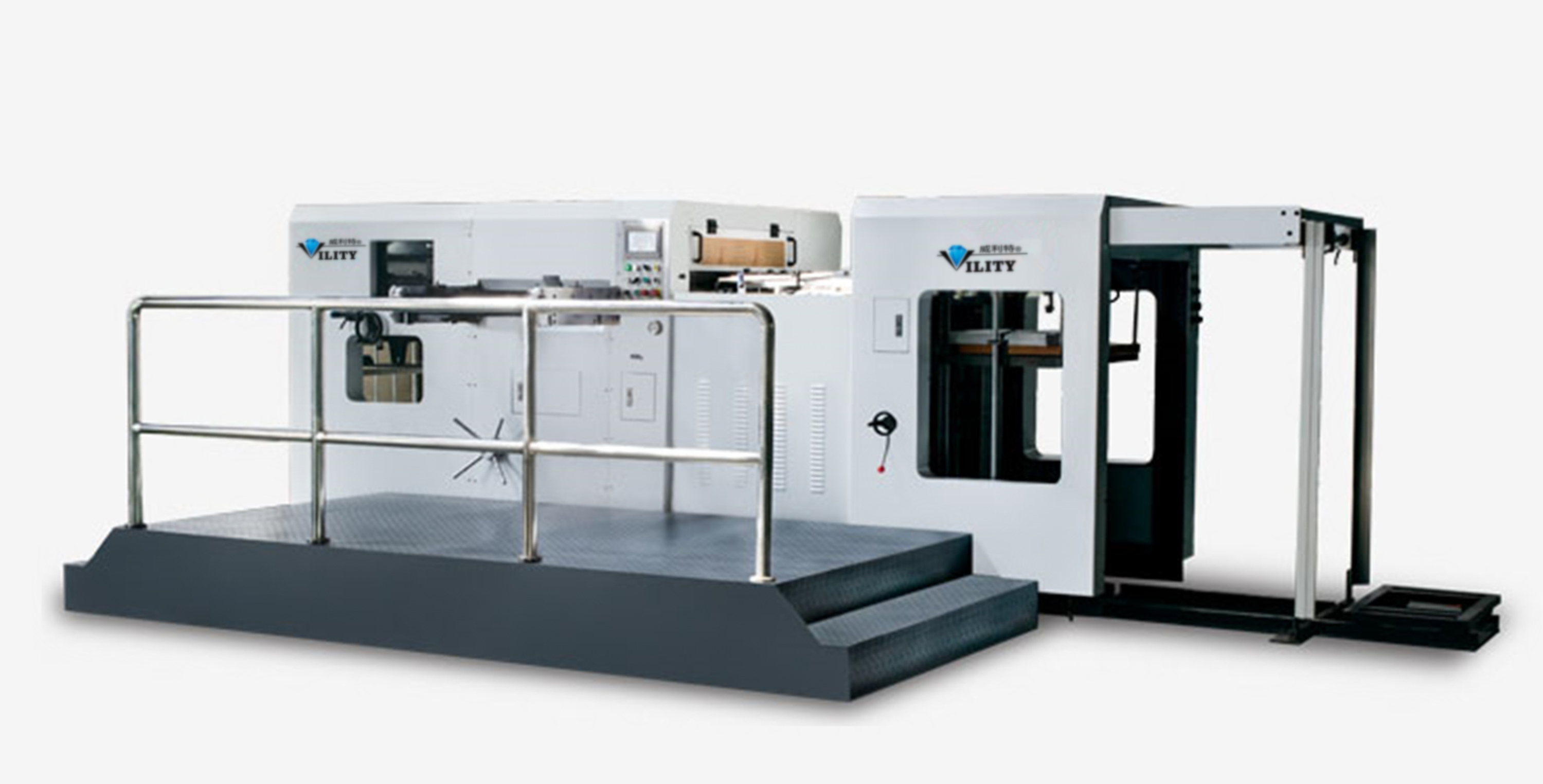

This automatic die-cutting and creasing machine is the key equipments in the post-print die-cutting process for cardboard box and corrugated board carton. Better than the traditional die-cutting equipment, the automatic machine has the advantages of high speed, large quantity, high security coefficient, high accuracy. It can produce various of beautiful packing boxes. This machine adopts the international advanced technique, which has the high level of stability. We select and use the imported international famous brands for all electric appliances piece, standard parts and key components, such as, programmable controller, frequency converter, human-computer interface, screws, bearings, chains, bent axle, worm wheel etc.



Product Introduction

Automatic flat tag die-cutting and creasing machine is the key equipment for die-cutting and creasing, cold pressing and embossing of various paper products and films such as paper boxes, cartons and trademarks. This machine adopts high-speed flyer, high-strength gripper tooth row, swinging overall front gauge, pushing and pulling in one side gauge, high-precision intermittent mechanism, pneumatic locking plate, pneumatic clutch, overload protection, and automatic paper take-up to realize smooth paper feeding, accurate positioning, stable die-cutting, and neat paper take- up. Microcomputer control is applied to automate the whole process of the machine and display the working condition and troubleshooting method through human-machine interface. The key components, control system and fasteners are imported and carefully assembled to ensure the safety and reliability of the machine. There are sensors and safety devices in many places to ensure the normal work of the machine and personal safety.

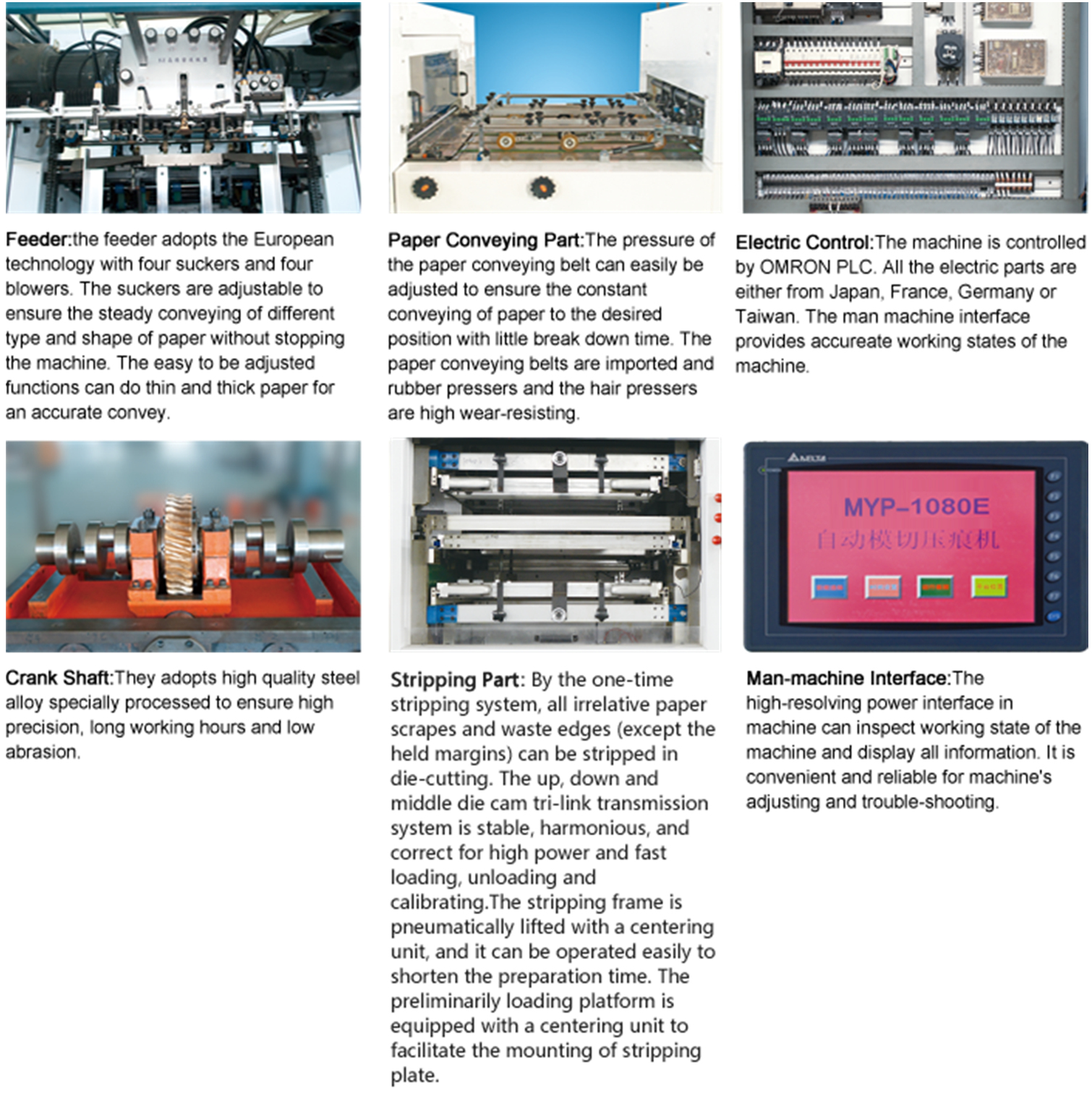

Equipment Features:

●Front guide is adjusted by stepper motor, easy operation and ensuring its high precision as well.
●The sheet-conveying unit adopts adjustable consturction, ensuring speed and preci-sion, especially fits to the conveying of thin sheet.
●Adopt coder in controlling program, which makes the running of the machine coordinately.
●The chain of gripper bar can be lubricated according to time and quantity. time break can be freely set.
●Pneumatic sampling system makes the sample-checking more convenient.
●All the electric unit,bearing, fastener, chain adopt improted famous brand products, ensuring precision and life.
●All the electric units have got CE Certificate, every safeguard coincides with CE Standard, safe and reliable.



Ⅰ. Equipment technical parameters.

Model	VT-D800S
Max. paper size(mm)	810×590
Min. paper size(mm)	320×240
Max. cutting size(mm)	780×590
Max. running speed(sheet/hour)	8500
Sheet thickness(mm)	Corrugated board :≤4 Cardboard:0.1-1.5
Max. pressure(T)	250
Total power(kw)	14.5
Net weight(t)	9.5

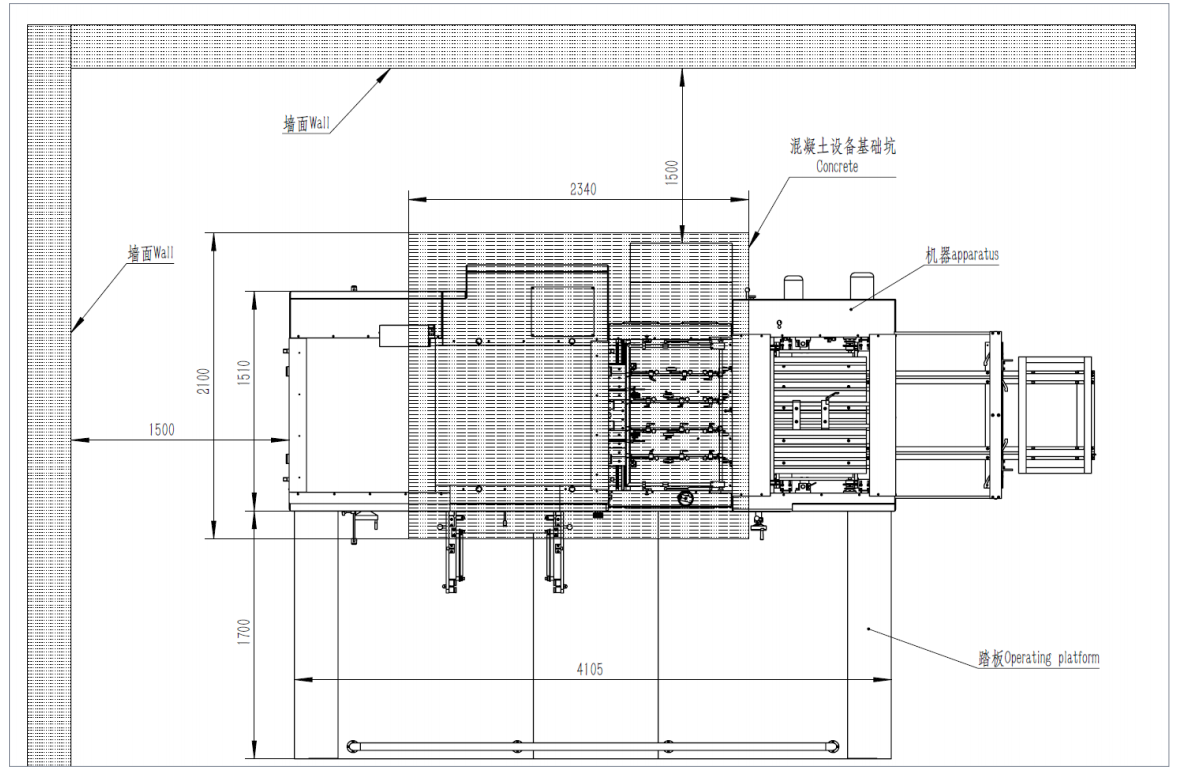

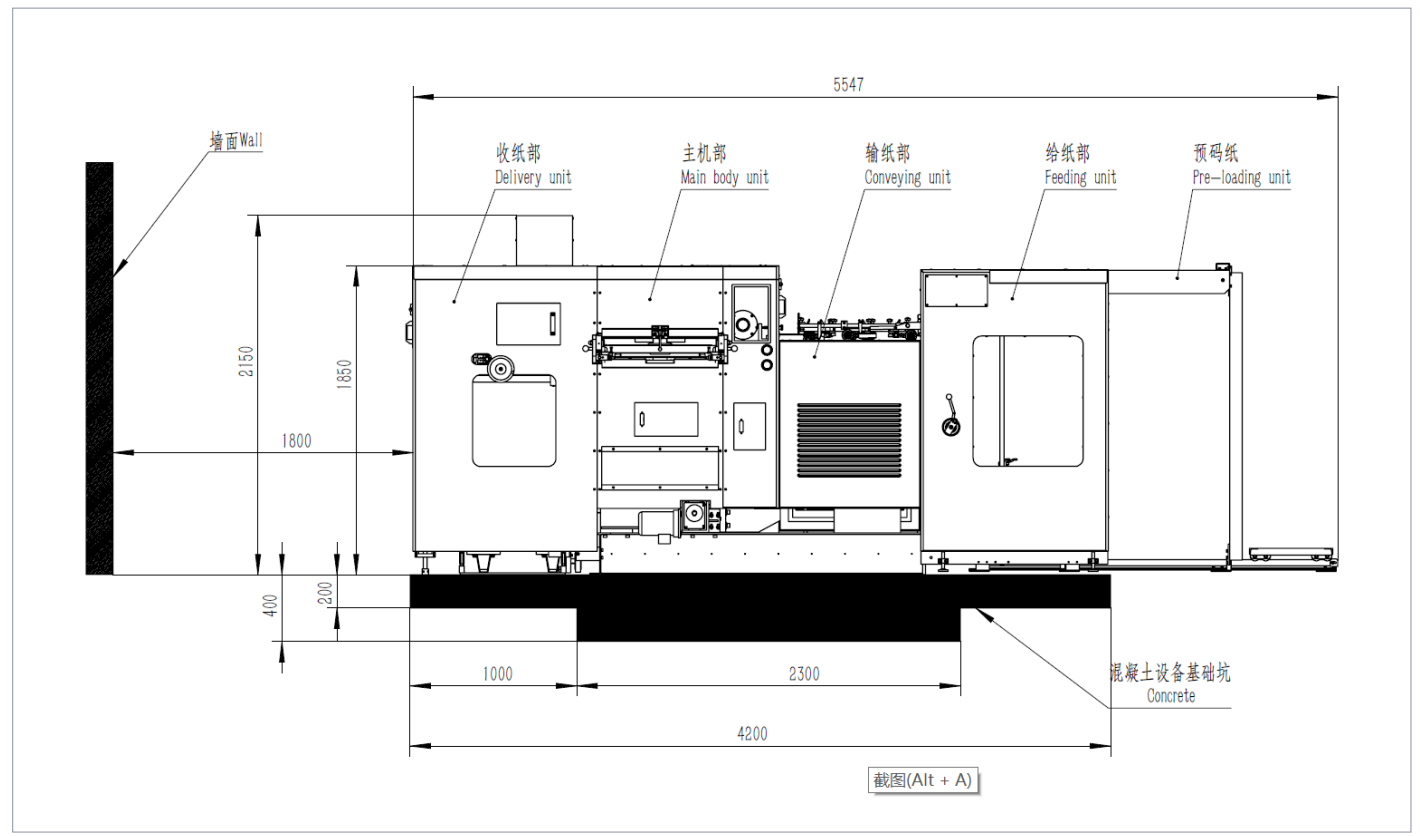

Overall dimension(mm)	5600×3400×2000
Air requirements (Buyer provide)	0.8Mpa, >0.36m³/min

After-Sales Service

• ? We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.

• ? Installation and debug machine for you without any charge. Also, giving a technical training for your employees.

• ? All of our machines can have one year guarantee and lifelong maintenance.
