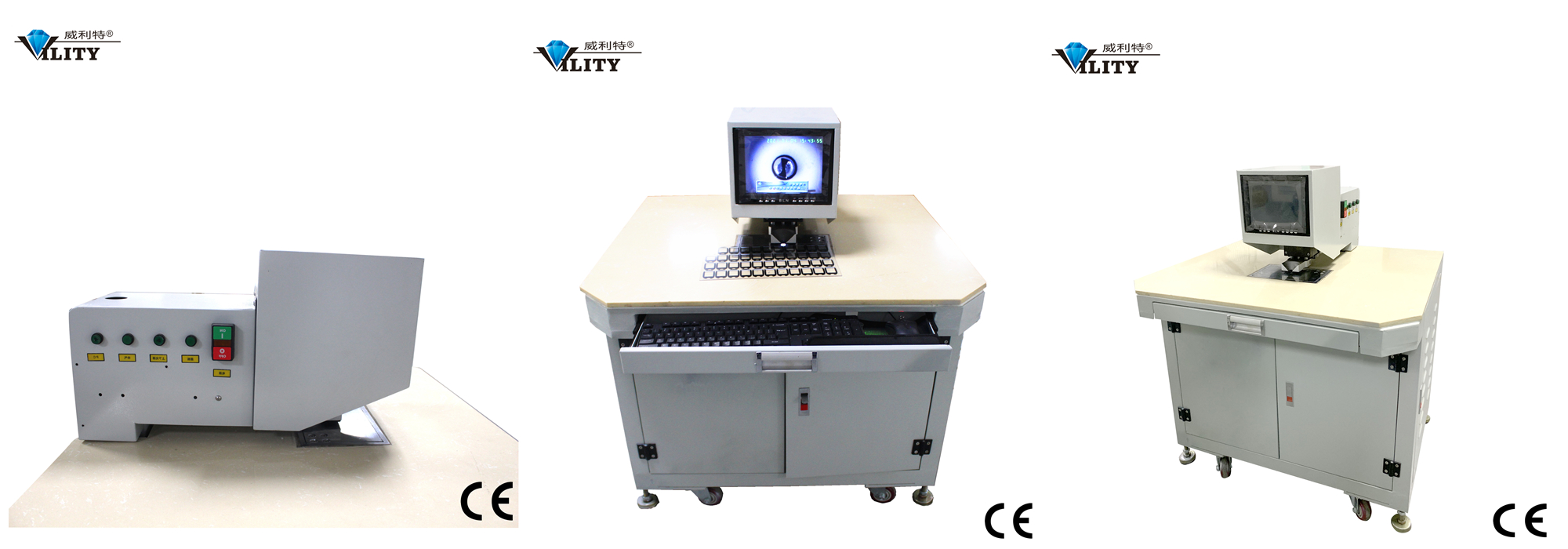

The Guide Hole Drilling Machine is used in PCB circuit board, FPC soft board, IMD/IML, film, diazo sheet, cell phone panel, cell phone keypad, sticker, membrane switch, film, PE, PC, PVC, PET film, polyester film, thin aluminum, aluminum substrate, FR4 glass fiber board and many other materials. CCD automatic hole drilling machine is suitable for single and double panel, PCB multi-layer board, fiberglass, PVC panel, acrylic and other fragile plastic sheet positioning drilling.

Advantages

1. All equipment is CE certified. And can be customized to meet customer requirements of other certification.

2. Our equipment is highly automated, and one person can man multiple production lines.

3. Accept OEM/ODM, screen printing industry whole line customization.

4. Printing, punching, die cutting precision 0.02mm.CCD camera visual alignment system, fast and accurate positioning and fine tuning, to ensure accuracy requirements.

Parameters

Model	VTD-D02
Screw	HIWIN
Processing	Automatically loading, punching, unloading
Control System	VT position punching system in English
Material fixed method	Air suction nozzle fix it
Max loading size	450mm*450mm
Punching Precision	±0.02mm
Hole Diameter	Φ1.0~5.0mm
Working speed	0.4s/hole
Feeding speed	0.6s/hole
Max punching	2.5KN(VT015/VT008) 0.7KN(VTZ15)
Supply power	AC380V/50Hz/   1KW
Light choose	Transmitted infrared light(three colors light can be choose from)
Air pressure	0.4-0.8Mpa
Machine dimension	L1890*W1500*H1404(mm)
Weight	450kg

After-Sales Service

• ? We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.

• ? Installation and debug machine for you without any charge. Also, giving a technical training for your employees.

• ? All of our machines can have one year guarantee and lifelong maintenance.
