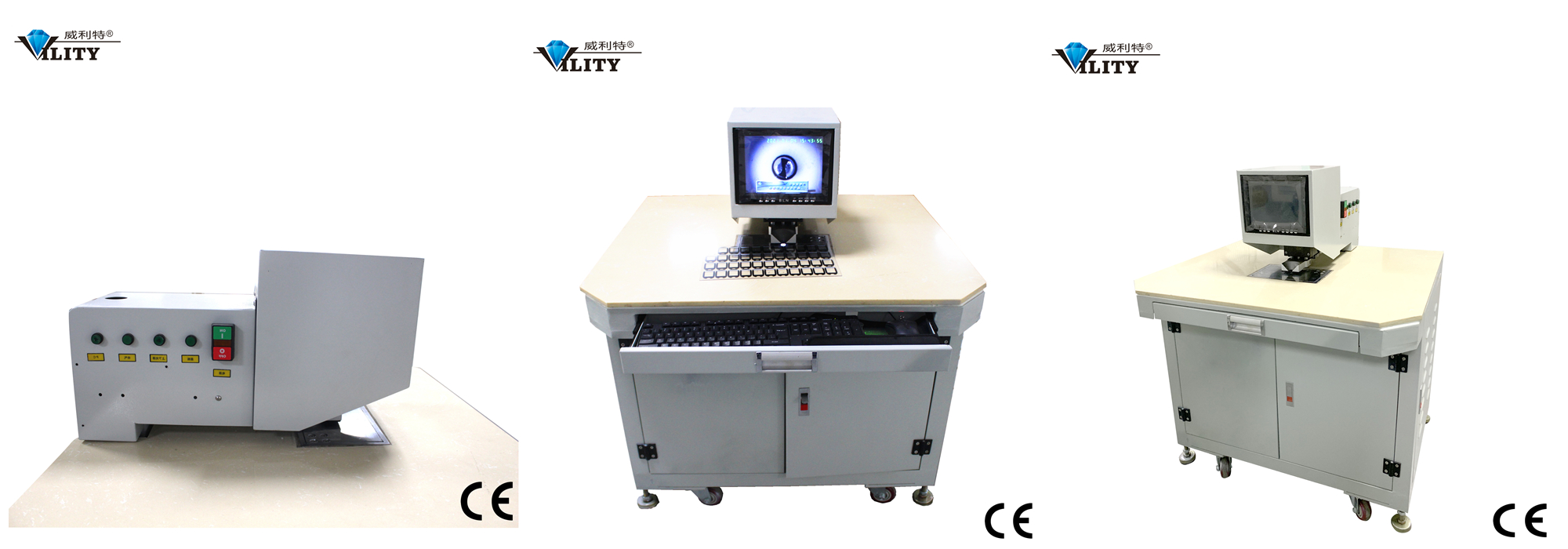

Equipment Description

CCD Automatic target hole drilling machine is also known as automatic target drilling machine, CNC drilling machine, automatic positioning drilling machine, different names, but actually the same kind of equipment .widely used in printing and packaging, electronic printing, nameplate signs and other industries post-printing alignment drilling!

The equipment is used in PCB circuit board, FPC soft board, IMD/IML, film, diazo sheet, cell phone panel, cell phone keypad, sticker, membrane switch, film, PE, PC, PVC, PET film, polyester film, thin aluminum, aluminum substrate, FR4 glass fiber board and many other materials. CCD automatic hole drilling machine is suitable for single and double panel, PCB multi-layer board, fiberglass, PVC panel, acrylic and other fragile plastic sheet positioning drilling.


Introduction Of Important Parts Of The Equipment

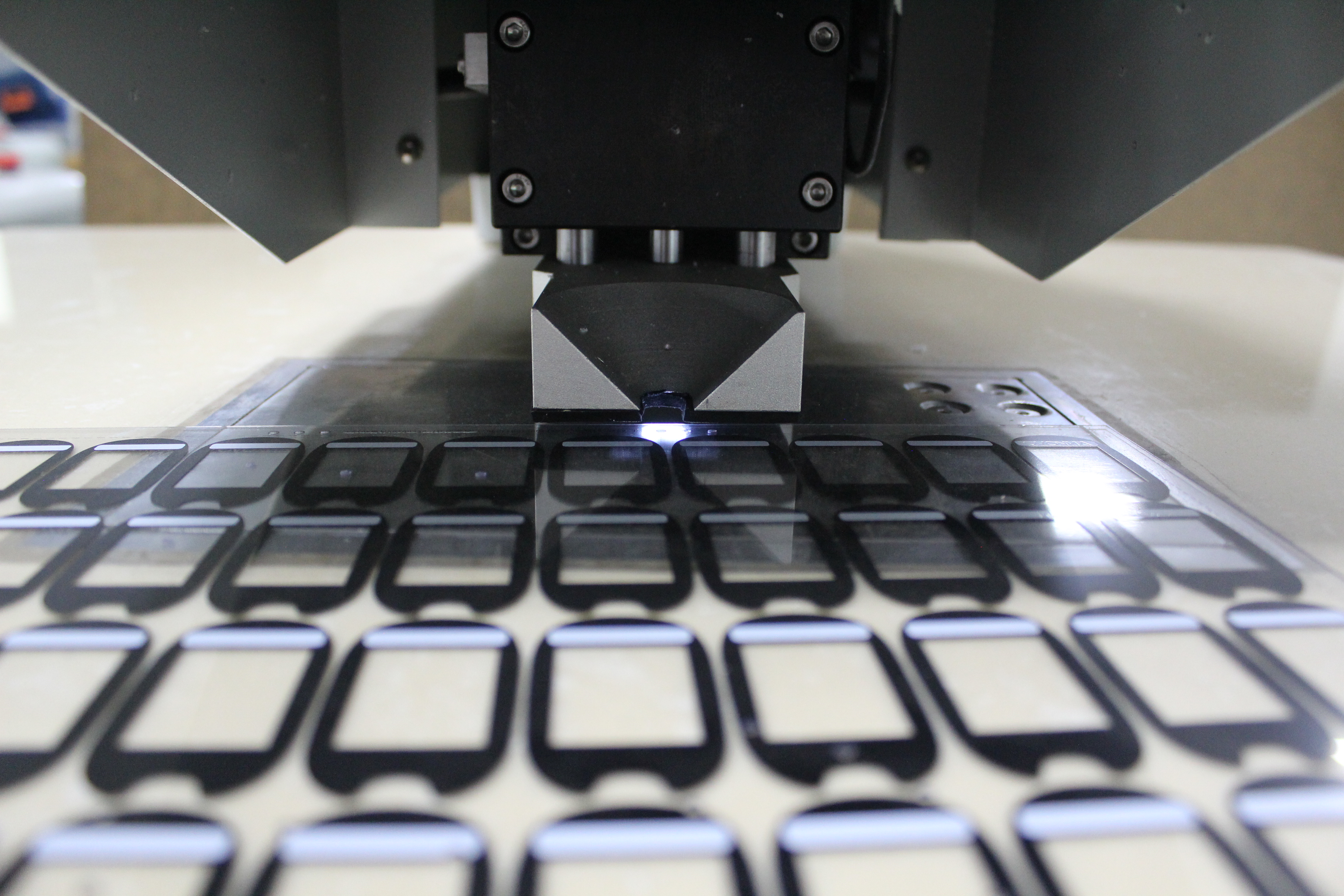

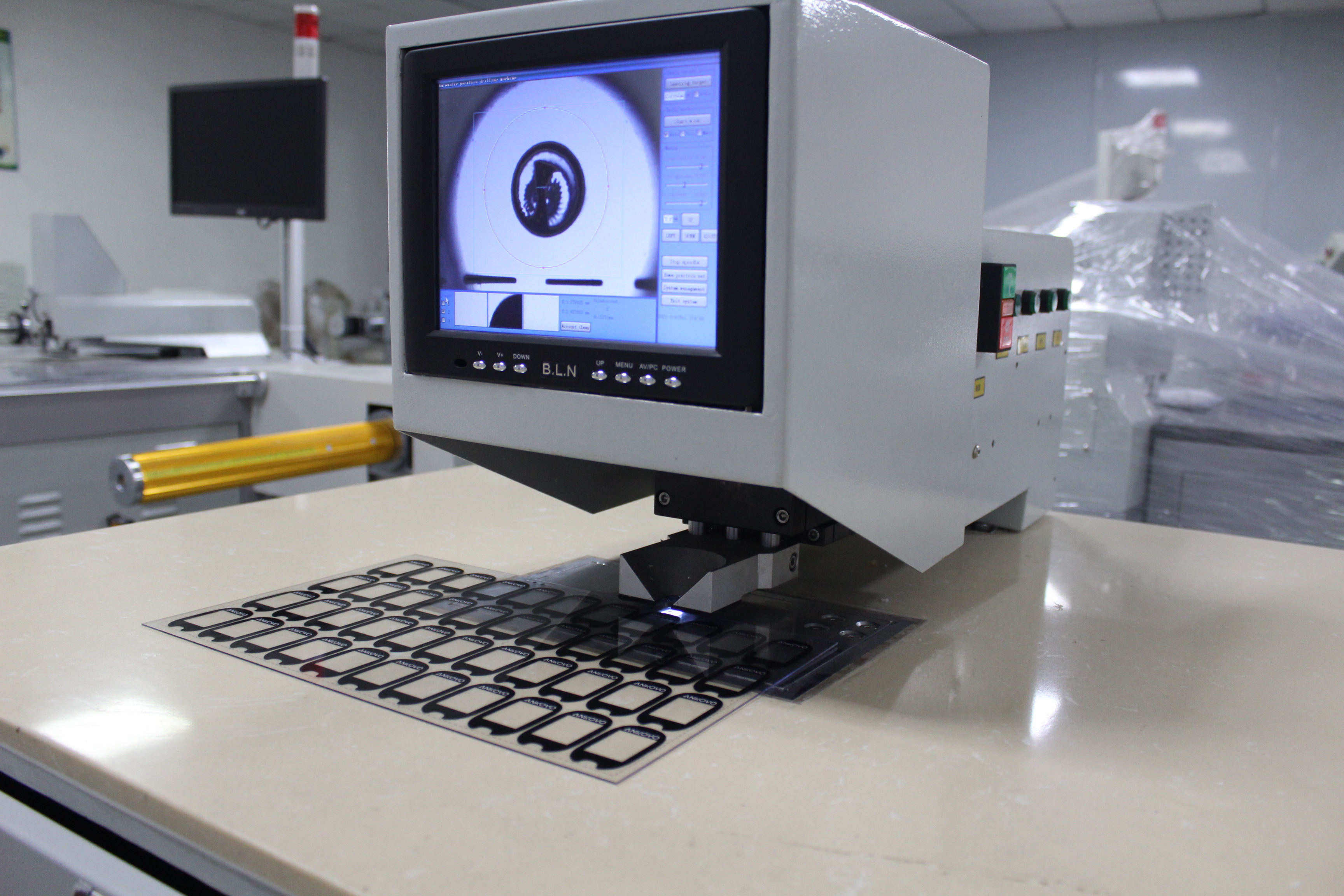

This equipment mainly includes hole drilling unit, equipped with CCD moving platform , high precision XYθ alignment platform, stable alignment, human-machine interface control + button switch, can set a variety of functional parameters, easy to operate; CCD automatic positioning punching, can automatically adjust the field of view of CCD according to the size of the material. CCD automatically calculates the spatial position of material and mold according to the MARK point on the material, and instructs the motor motion control to adjust the platform XYθ rotation for automatic hole drilling.

1. Alignment XYθ platform: Alignment XYθ platform is the core part of the machine, used for CCD vision alignment, this alignment platform is composed of XYθ4 axes, with alignment eccentricity function, alignment accuracy can be controlled within 0.02mm.

Advantages
1. Using marble panels, in addition to static treatment. Wear-resistant, practical, beautiful appearance, generous, reasonable structure, easy operation, high drilling precision, no burrs and so on.
2, using windows2000 operating system, the operation is simple and convenient.
3. The original image algorithm has the function of predicting the center and correcting the deviation for the incomplete target type, and the processing accuracy is less than 0.008mm.
4. Full-screen automatic tracking technology, when the target appears, it automatically locks and punches holes, and the whole process only takes 0.4 seconds.
5. Using single chip technology to process, automatically identify the target, and the performance is more stable. It has a variety of light source selection functions to make the image clearer.
6. The optional function of reflected light and transmitted light is adopted, which greatly improves the punching accuracy; 15 color liquid crystal display is beneficial to operation and long-term work.
7. The working mechanism adopts the combination of mechanical and pneumatic, with stable performance and greatly improved drilling force.
8. Applicable to various fragile materials such as acrylic.

Parameters

Item	Parameter
Drilling diameter	0.1-3.0mm
Processing accuracy	±0.02mm
Processing speed	0.6s/hole
Processing thickness	0.1-3mm
Power consumption	0.5kw/h
Type of drilling	Drilling from bottom to top
Pneumatic pressure	0.4-0.8Mpa
Machine weight	228±2kg
outline size	160*850*1000mm(customizable)

After-Sales Service

• ? We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.

• ? Installation and debug machine for you without any charge. Also, giving a technical training for your employees.

• ? All of our machines can have one year guarantee and lifelong maintenance.
