1: Application Scope

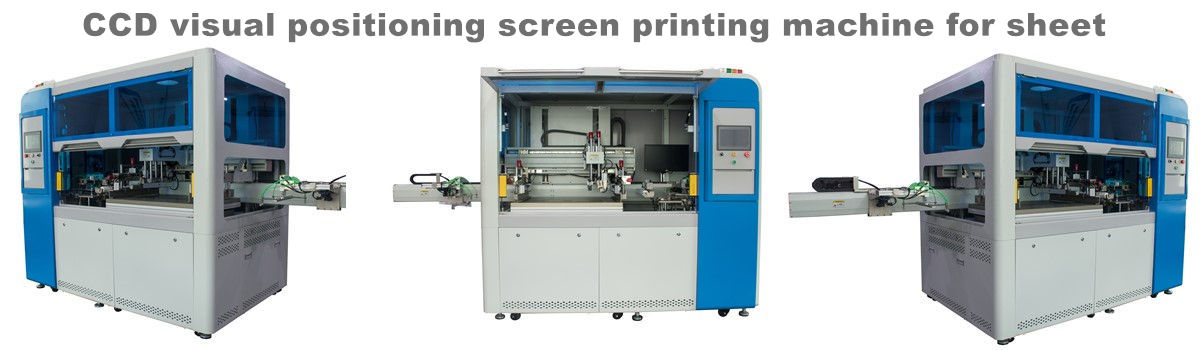

The CCD Alignment Screen Printing Machine for Sheet is the core machine of the sheet printing line.The whole process includes: automatic separate material - auto dust removal (including Initial positioning of clamping edge) - automatic loading - CCD alignment screen printing - automatic unloading - baking - auto collecting the finished product.
The machine is suitable for printing on sheet materials such as: membrane switches, glass covers, acrylic, ITO, conductive films, composite back covers, etc.High alignment accuracy, fast printing speed and the entire production line can be operated by just one person.

Video presentation link: https://www.youtube.com/watch?v=Me9PPc0kd_I



2: Features and performance.

Main machine feature---screen printing machine

https://youtube.com/shorts/_gWecXsXhH8

(1). CCD automatic alignment system, if the similarity is not within the setting range, any abnormal, it will stop and automatically start adjust the alignment successful and continue to work.
(2). Using numerical control motor, printing speed, return to the ink speed can be set in a random block.
(3). Using numerical control motor, printing distance, return to the ink distance can be set in a random data.
(4). Automatic computing printing, and calculate the qty, and printing can be set automatically stop.
(5). Photoelectric control feeding and discharging to avoid the surface damage of substrates, can improve the printing quality.

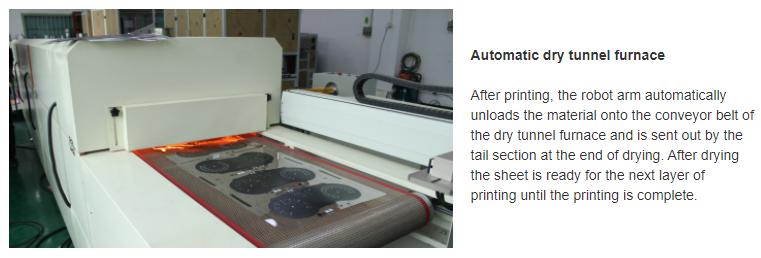

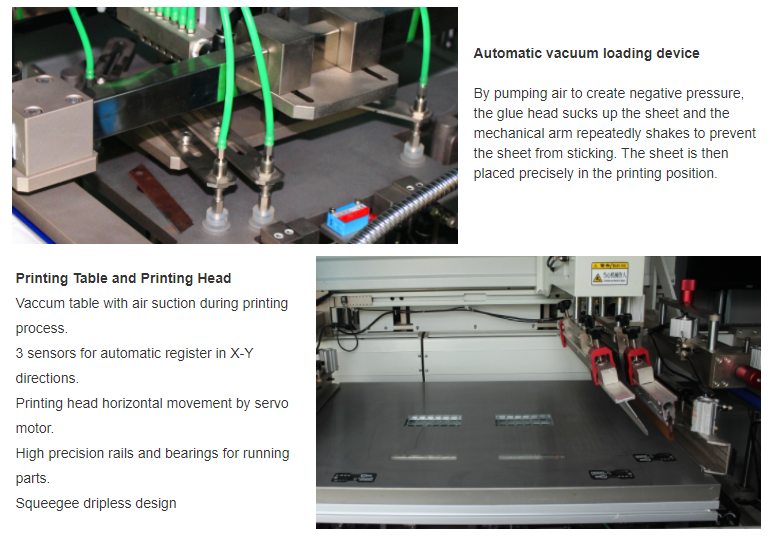

Details Of The Printing Machine

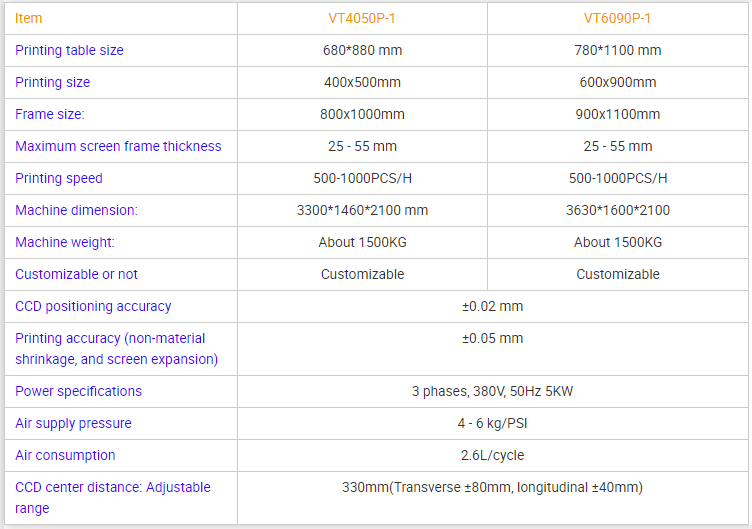

Parameters

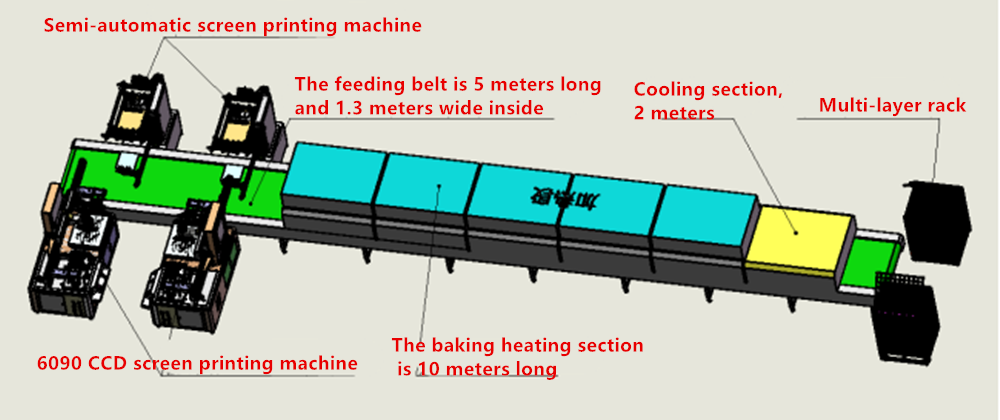

Machine Process

Raw material →Automatic feeding machine →Automatic printing→Automatic UV or oven →Automatic receiving →End product.



After-Sales Service

• ? We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.

• ? Installation and debug machine for you without any charge. Also, giving a technical training for your employees.

• ? All of our machines can have one year guarantee and lifelong maintenance.
